My designs of R/C models.

Here I will presented all mymodels designs, that I design and build. Many of them can be build from plans, manuals and CNC files, available at my Web Store.

GUPPY electric sailplane

Guppy is my first succsessful model, that concuqer the hearts of many modellers all over the world.

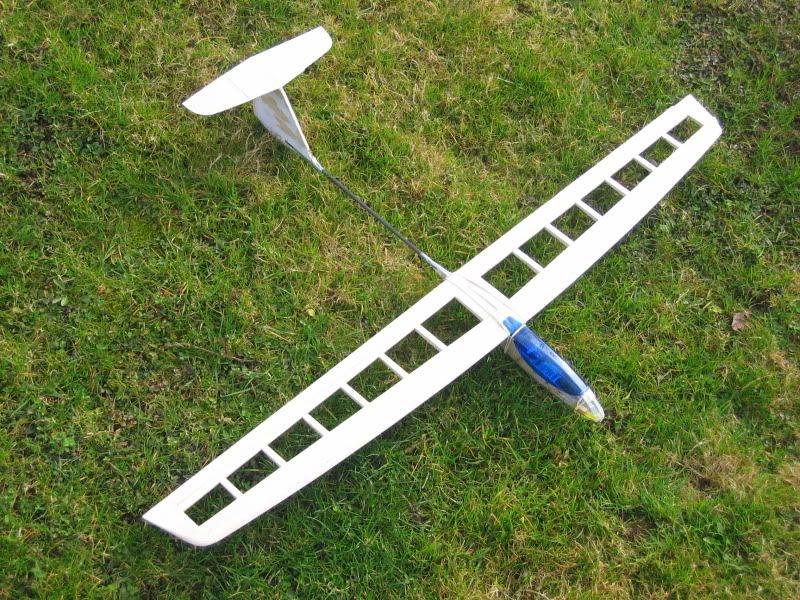

It is a nice wooden sailplane. The Wing is classic balsa construction with spar caps, spar web, ribs and balsa nose sheeting. It is covered with heat shrinkable covering film. A Fuselage  is a simple box made from thick balsa plates. The bottom side is laminated from several balsa layers and glued in proper shape. The tail boom is made from carbon tube that is hidden by four balsa plates.  Complete fuselage is carved by hand to eliptical cross section and covered with heat shrinkable covering film. Model can be made as pure sailplane, or it can be equipped with electric motor for ease of selflaunching.

    Technical data
    Wingspan: 150 cm
    Length: 83 cm
    Wing area: 20,4 dm2
    RTF mass: 450 g

ADITIONAL INFORMATION:

Building thread on rcgroups.

VIDEO 1,   VIDEO 2,   VIDEO 3

PHOTO GALLERY

SAMPLE PLAN DOWNLOAD

-----------------------------------------------------------------------------------------------------------------------------------------------



GUPPY 2 electric sailplane

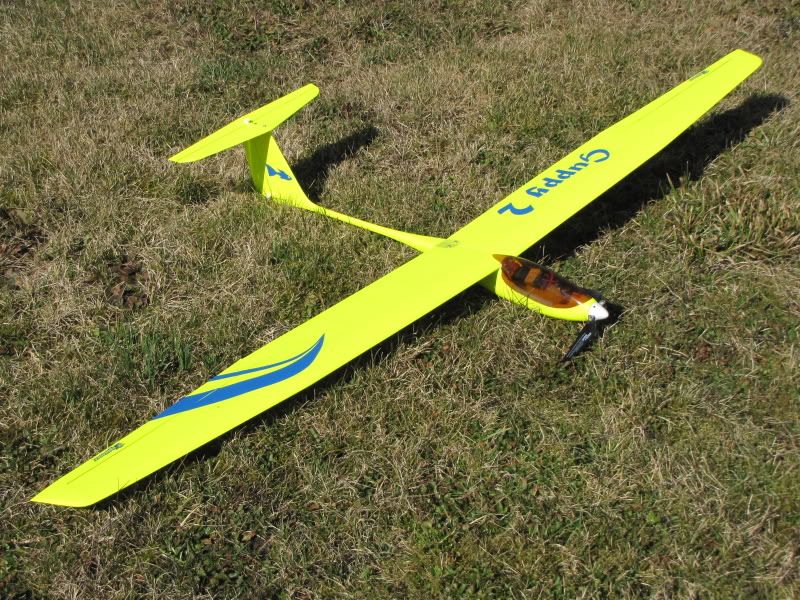

       GUPPY 2 is succsessor of previous Guppy, that was published in 2006, and comprise some refinements, some new design details and solutions. It is a nice wooden sailplane. The Wing is classic balsa construction with spruce spar caps, balsa web, ribs and balsa nose sheeting. It is covered with heat shrinkable covering film. A Fuselage  is a simple box made from thick balsa plates. The bottom side is laminated from several balsa layers and glued in proper shape. The tail boom is made from standard carbon tube that is hidden by four balsa plates.  Complete fuselage is carved by hand to eliptical cross section and covered with heat shrinkable covering film. Model can be made as pure sailplane, or it can be equipped with electric motor for ease of selflaunching. Design allso allow use of modern brushles motors and LI-xx cells.

  Technical data:
    Wingspan: 156 or 170 cm
    Aileron or just poly wing version
    Length: 83 cm
    Wing area: 20,4 dm2
    RTF mass: 550 g min.

ADITIONAL INFORMATION:

Building thread in my Blog, Building thread on rcgroups.

VIDEO 1,   VIDEO 2

PHOTO GALLERY

SAMPLE PLAN DOWNLOAD

GO TO WEBSTORE TO PURCHASE PLANS (19$)

 --------------------------------------------------------------------------------------------------------------------------

GUPPY MicroSloper

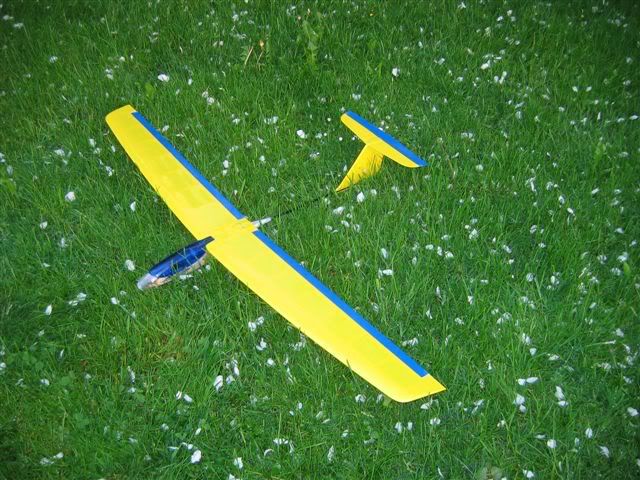

       GUPPY 2 is a small glider for the slopes. Due its compact and small dimensions, it can be always prepared for the flight at your car back seat or trunk.Guppy MS love to fly relatively fast and it will give you many happy hours on the slopes. It is tough and will survive many unfortunate landings.

  Technical data:
    Wingspan: 120cm
    Aileron & elevator only
    Length: 68,7 cm
    Wing area: 13,46 dm2
    RTF mass: 310 g

ADITIONAL INFORMATION:

Building thread Part 1,  Building thread Part 2

Building thread on rcgroups.

VIDEO 1,

PHOTO GALLERY


  -------------------------------------------------------------------------------------------------------------------------

HORNET Sloper from depron

This little model was designed for casual soaring on the slope. It is not large, so it can always be your companion on the back seat of your car. It is entirely made from depron. There are some reinforcements of fuselage and wing from wood.

Technical data:

    Wingspan: 114 cm
    Length: 80 cm
    Wing area: 17,23 dm2
    RTF mass: ~200 g

IMAGE GALLERY -1-

IMAGE GALLERY -2-  with 53 photos

Building thread on rcgroups

VIDEO 1, VIDEO 2,  VIDEO 3

PLANS PREVIEW,   MANUAL PREVIEW

SAMPLE PLAN DOWNLOAD

GO TO WEBSTORE TO PURCHASE PLAN & MANUAL  (10$)

-------------------------------------------------------------------------------------------------------------------------

HORNET F5J electric competition sailplane

HORNET F5J model was designed in 2005 with main goal to get a single model, that could be used in both F5J 7 cells and F5J-400 category, simply by swapping between two different nose cones, each equipped with its own propulsion and battery.

Model is an excelent thermaller, but it is not so good in strong winds (30km/h and up) because of its lightweight wing loading.

 Technical data:

    Wingspan: 186 cm
    Length: 1022 cm
    Wing area: 29,9 dm2
    RTF mass: ~750 g

  IMAGE GALLERY

 BUILDING THREAD (on my local RC models forum)

 DOWNLOAD PLAN SAMPLE

 BUY pdf tiled plans AT WEBSTORE  (10$)



PALICNJAK F5J-400 Experimental Sailplane

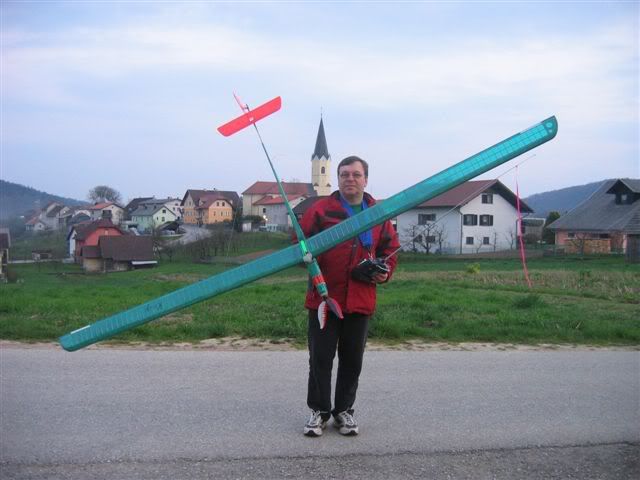

PALICNJAK (Cheleutoptera) was my entry into F4J-400 electric sailplane category. It fly like a dream and with his 3m wingspan and unique appearance, you can fly it far far away and heights, without fear loosing it from sight, or swap with another glider high above. As it has full flying tail (rudder and elevator) it is very meneuverable ad it soar very well as it has extremly low wing loading. Minimum sink and glide angle are exceptional, but penetration into wind is hard as it is so light.

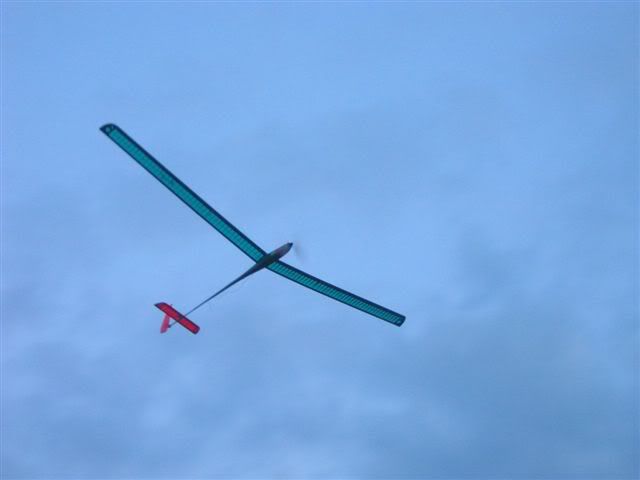

This model is perfect for calm weather.

 Technical data:

    Wingspan: 300 cm
    Length: 140 cm
    Wing area: 35,5 dm2
    RTF mass: ~750 g


ULTRON 3D v.2  full fuse & airfoil aerobactic model

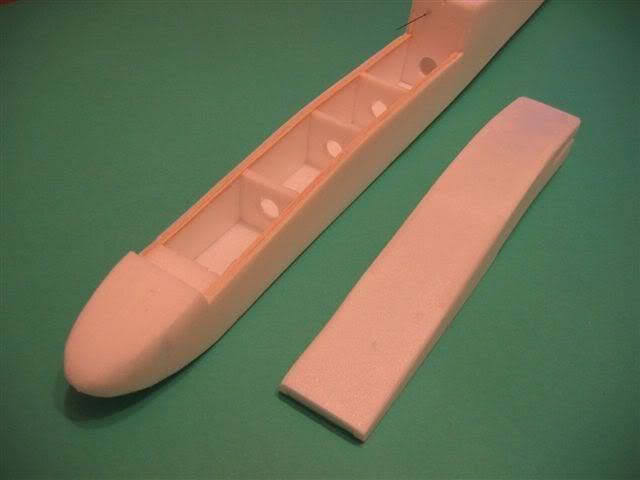

Ultron is my first attempt to design and build a so called "full fuse & airfoiled wing" depron model.

Some data:
  • Wing span: 960 mm
  • fuselage length: 840 mm
  • Wing area: 22,5 dm2
  • RTF weight: 370 g
  • Motor: Robbe Roxxy 2827
  • Propeller: 9"/4,75"-11"/4,75"
  • ESC:18A
  • Battery: Li-Po 3S1P 800 mAh

 Many ultrons were build in these years, and makes happy their owners.

Plans available!













-------------------------------------------------------------------------------------------------------------------------

SZD-10 bis Czapla

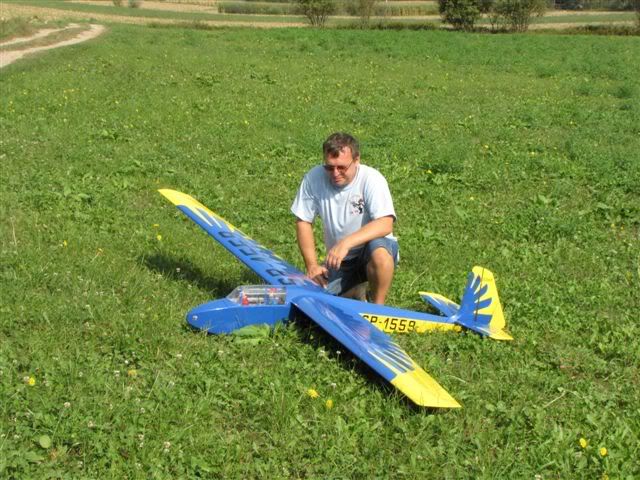

This is a RC model of a Polish vintage sailplane SZD-10 in 1:5 scale.

Czapla was two seat school sailplane build in 1958. There is at least one still flying.

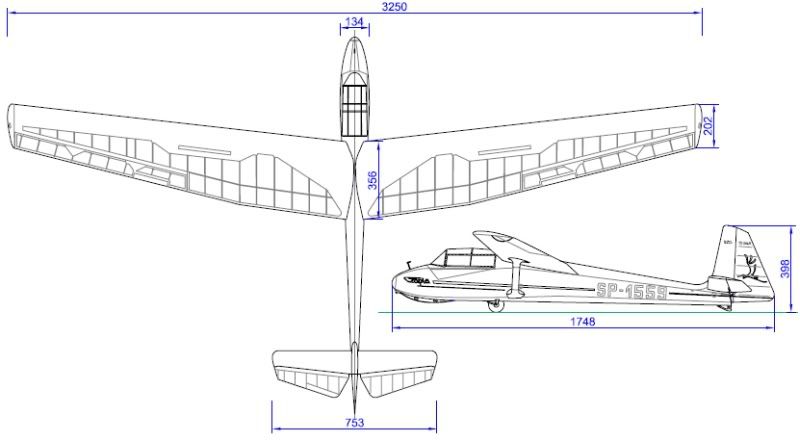

Technical data of the model:

Wingspan 3250mm

Fuselage length: 1784mm

Materials used in model construction:

Mostly balsa, lite plywood and spruce strips.







Link to building thread on rcgroups: http://www.rcgroups.com/forums/showthread.php?t=1076984

Link to youtube videos of Czapla, both flying and building: Czapla on video (13 videos in Videlo List)

Link to plans and DXF4CNC files :

FRE Downloadable Assembly manual: (click here)

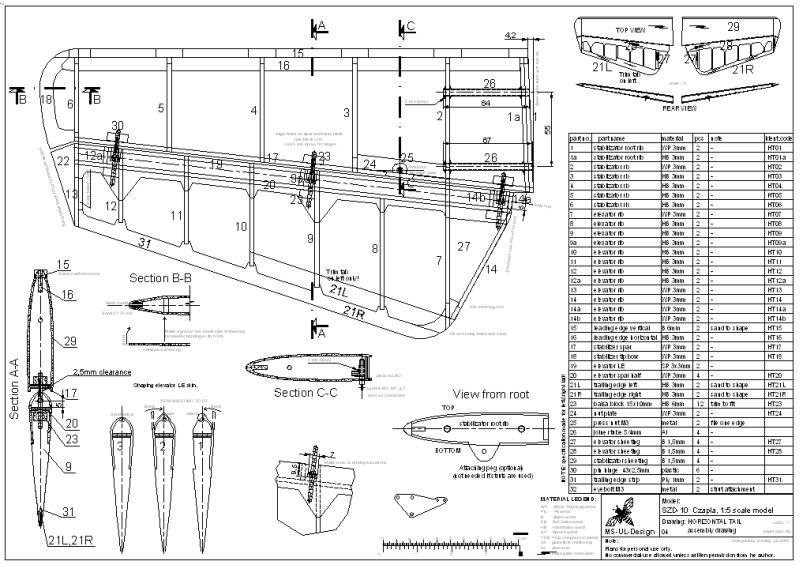

Plans preview (horizontal tail plan):



DXF files preview (horizontal tail parts as prepared for CNC):

Each part has identification number, and same number appears on the plans and part&material list.





-------------------------------------------------------------------------------------------------------------------------
